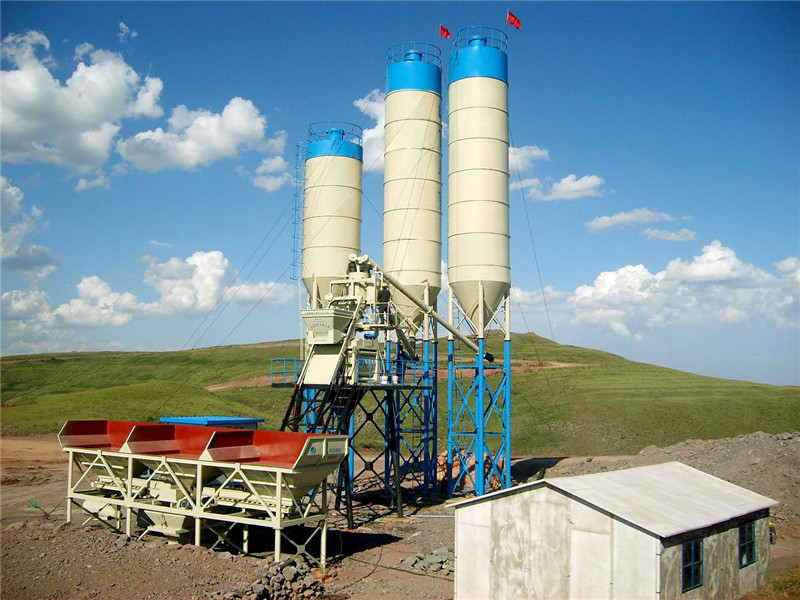

Concrete Plant #1: What is a concrete batching plant?

A concrete batching plant, also known as a concrete mixing plant or a concrete mixing station, is a facility used to produce concrete by combining and mixing various materials such as sand, water, cement, and aggregates (gravel, crushed stone, or recycled concrete). The main purpose of a concrete batching plant is to produce large quantities of concrete that can be used in construction projects such as buildings, roads, bridges, and other infrastructure.

The concrete batching plant can come in various sizes and configurations, but typically, it consists of several components, including:

1. Aggregate bins: These are storage containers used to hold different sizes of aggregates such as sand, gravel, or crushed stone.

2. Conveyor belts: These are used to transfer the aggregates from the storage bins to the mixing area.

3. Weighing system: This includes load cells that measure the weight of each component such as aggregates, cement, and water.

4. Mixing unit: This is where the components are mixed together to create the concrete.

5. Control panel: This is the central control unit that monitors and controls the operation of the batching plant.

6. Cement silos: These are used to store cement before it is mixed with other components.

Once the components are mixed in the mixing unit, the resulting concrete is then transported to a truck or other containers for delivery to the construction site. Concrete batching plants are widely used in the construction industry due to their efficiency, versatility, and ability to produce high-quality concrete in large quantities.
